Item Sales Info
Part Number: S9745
/
Vendor ID Number: 27
/
Custom:
![11.5 watt LED Downlight Retrofit; 5"-6"; Brushed Nickel trim; 3000K; 120 volts; Dimmable](/vendors/27/large/S9745.jpg "11.5 watt LED Downlight Retrofit; 5"-6"; Brushed Nickel trim; 3000K; 120 volts; Dimmable")

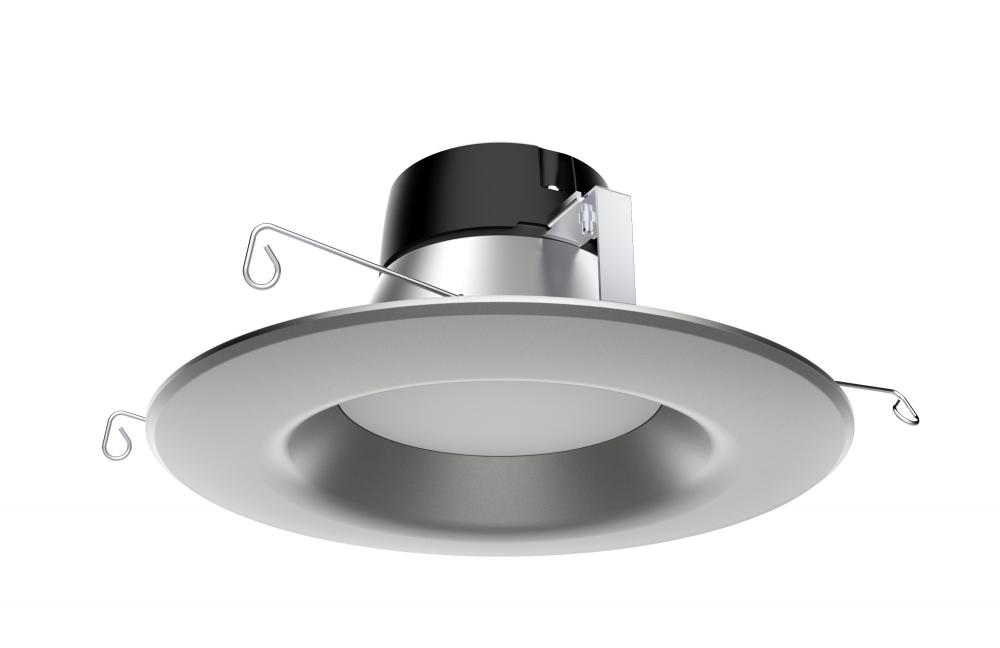

11.5 watt LED Downlight Retrofit; 5"-6"; Brushed Nickel trim; 3000K; 120 volts; Dimmable
by Satco Products Inc.
41
50
Pack Of: 1
3565 In Stock
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 3.50"
Width: 7.41"
Finish
Brushed Nickel / Frosted
Product Overview
11.5 watt LED Downlight Retrofit; 5"-6"; Brushed Nickel trim; 3000K; 120 volts; Dimmable
Product Availability
-
Item appears to be in stock and ready to ship
Technical Details
Details
Category:
Recessed Ltg.
Subcategory:
Other Recessed Ltg.
Finish:
Nickel /vendors/vendorImages nickel.jpg
Style:
Contemporary
Option:
LED
Prop 65 /vendors/vendorImages prop65.png
Finish:
Brushed Nickel / Frosted
Category:
Recessed
Sub Category:
Retrofits
Style:
Contemporary
Bulb Hours:
50000
Bulb Kelvin:
Warm White
Bulb Shape:
Integrated LED
Bulb Type:
LED
Diameter:
7.41
Dimmable:
Yes-Dimmable
Harmonized Codes:
9405.42.6000
Lumens:
800L
Ship Carton Height:
8.07
Ship Carton Length:
9.06
Ship Carton Width:
3.94
Warranty:
5-Years
Amps:
0.096A
ANSI Base:
E26 Adapter
BAA Compliant:
No
Beam Spread:
90
CA Prop-65:
Lead
Can Size:
5-6 in.
Carton Cubic Feet:
0.1667
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
T20 Non-Compliant - LPW <80
CEC Terse:
Non-Compliant
CEC Web Text:
Non-Compliant
Connection:
Direct Wired
Country Of Origin:
China
CRI:
90+
Dimmable Down To:
100 to 20 percent
Dimming Type:
Forward Phase or Reverse Phase or Phase Selectable or Triac
Efficacy:
69.57 LPW
FCC Compliant:
Yes
Finish Family:
Nickel
Fixture shape:
Round
Incandescent Equivalent:
65W
Indoor Outdoor:
Indoor
JA8 Compliant:
No
Lens Finish:
White
Lens Material:
Plastic (PS)
Material:
Aluminum
Mounting Procedure:
Ceiling
Operating Temprature:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
0.96
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Safety Listing:
cULus - Classified;cULus - Certified;cRUus - Recognized Component
SDS class:
LED_Fixture
Short Description:
11.5WLED/RDL/5-6/30K/BN/120V
Temperature (CCT):
3000K
Title 20 Compliant:
No
Title 24 Compliant:
No
Trim Color:
Silver
Wattage Selectable:
No
Weight Lb.:
0.84
Manufactured By:
Satco Products Inc.
