Item Sales Info
Part Number: S9630
/
Vendor ID Number: 27
/
Custom:

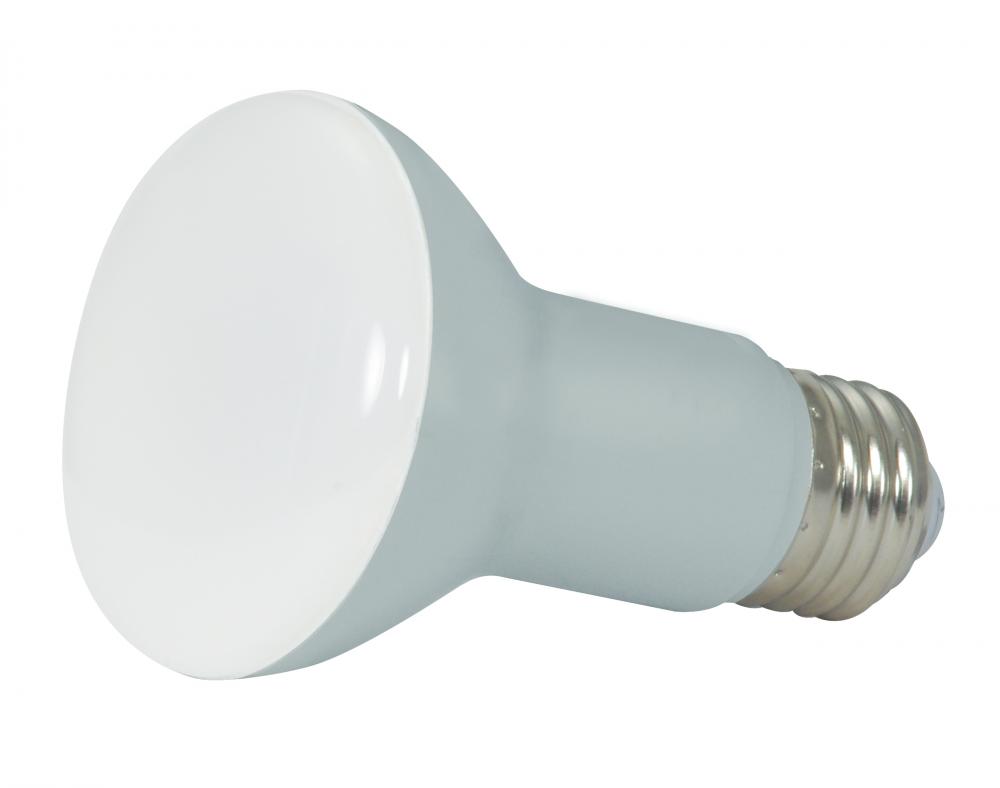

6.5 Watt; LED R20; 2700K; 107 deg. Beam Angle; Medium base; 120 Volt; Dimmable
by Satco Products Inc.
9
44
Pack Of: 1
9914 In Stock
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Width: 2.50"
Product Overview
6.5 Watt; LED R20; 2700K; 107 deg. Beam Angle; Medium base; 120 Volt; Dimmable
Product Availability
-
Item appears to be in stock and ready to ship
Technical Details
Details
Category:
Light Bulbs
Subcategory:
LED Bulbs
Finish:
White /vendors/vendorImages white.jpg
Style:
Traditional
Finish Family:
White /vendors/vendorImages white.jpg
Category:
LED
Sub-Category:
BR & R LED
Volts:
120V
Bulb Dimmable:
Yes-Dimmable
Bulb Hours:
25000
Bulb Kelvin:
2700K
Bulb Shape:
R20
Diameter:
2.5
EA Length:
2.6
Harmonized Codes:
8539.52.0030
Length:
3.94
Lumens:
525L
Shap Carton Width:
2.6
Ship Carton Height:
4.25
Ship Weight:
0.17
Warranty:
5 Year Limited - 10 hr per day
Weight:
0.09
BAA Compliant:
No
Beam Spread:
107
Bulb ANSI Base:
E26
Bulb Base:
Medium
Bulb Finish:
Frost
Burning Position:
Universal
Candle Power:
180
Carton Cubic Feet:
0.0166
Cartons Per Unit:
1
CBCP:
180
CCT Selectable:
No
CEC:
Non-Compliant - <82 CRI
CEC Alt Sub:
S29614
CEC Terse:
Non-Compliant
CEC Web Text:
Non-Compliant
Color Temprature:
Warm White
Country Of Origin:
China
CRI:
80+
Dimmable Down To:
100 to 20 percent
Dimming Type:
Forward Phase or Reverse Phase or Phase Selectable
DLC Approved:
No
Efficacy:
80.77 LPW
Enclosed Fixture Use:
Yes
Enclosure Rating:
Enclosed Rated Lamp
FCC Compliant:
Yes
Housing Color:
Gray
Incandescent Equivalent:
45W
Indoor Outdoor:
Indoor
JA8 Compliant:
No
Lamp Filament:
LED
Lens:
Yes
Lens Finish:
Frost
Location Rating:
Damp
Operating Frequency:
60Hz
Operating Temp:
-25C (-13F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
0.92
Quantity In Pack:
1
R9 Value:
11
RoHS Compliant:
Yes
SDS class:
LED_Lamp
Short Description:
6.5R20/LED/2700K/525L/120V
Style:
Contemporary
Technology:
LED
Title 20 Compliant:
No
Title 24 Compliant:
No
Wattage Selectable:
No
Watts:
6.5W
Manufactured By:
Satco Products Inc.
