Item Sales Info
Part Number: S8533
/
Vendor ID Number: 27
/
Custom:

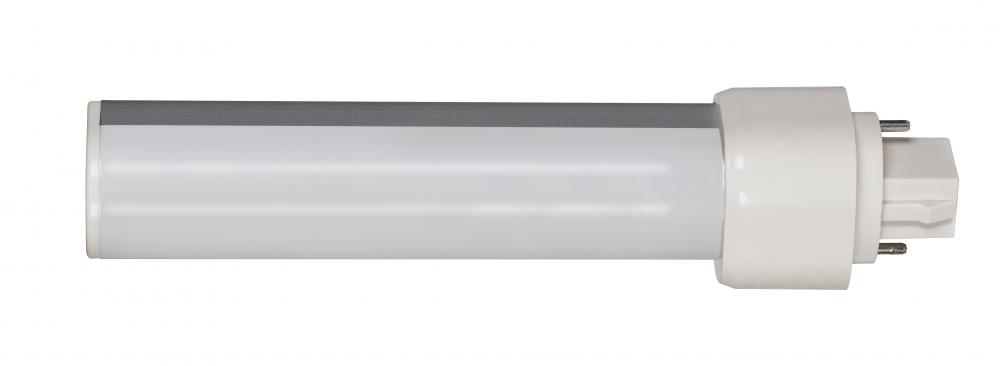

9 Watt LED PL 2-Pin; 4000K;1000 Lumens; G24d base; 50000 Average rated hours; 120 Deg. Beam Angle;
by Satco Products Inc.
22
24
Pack Of: 1
4932 In Stock
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Width: 1.09"
Product Overview
9 Watt LED PL 2-Pin; 4000K;1000 Lumens; G24d base; 50000 Average rated hours; 120 Deg. Beam Angle; Horizontal; Type B; Ballast Bypass
Product Availability
-
Item appears to be in stock and ready to ship
Technical Details
Details
Category:
Light Bulbs
Subcategory:
LED Bulbs
Finish:
White /vendors/vendorImages white.jpg
Style:
Traditional
Finish Family:
White /vendors/vendorImages white.jpg
Category:
LED
Sub-Category:
LED CFL Replacements Pin Based
Volts:
120V-277V
Bulb Dimmable:
Non-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
4000K
Bulb Shape:
PL
Diameter:
1.09
EA Length:
1.5
Harmonized Codes:
8539.52.0091
Length:
6.63
Lumens:
1000L
Shap Carton Width:
1.5
Ship Carton Height:
6.77
Ship Weight:
0.26
Warranty:
5 Year Limited - 10 hr per day
Weight:
0.19
BAA Compliant:
No
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass- Direct wire only 100V-277V
Beam Spread:
120
Bulb ANSI Base:
G24d
Bulb Base:
G24d (2-Pin)
Bulb Finish:
Frost
Burning Position:
Horizontal
Carton Cubic Feet:
0.008800000000000001
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Cool White
Country Of Origin:
China
CRI:
80+
DLC Approved:
No
Efficacy:
111.11 LPW
Enclosed Fixture Use:
Yes
Enclosure Rating:
Enclosed Rated Lamp
FCC Compliant:
Yes
Flourescent Equivalent:
18W/26W
Housing Color:
White
Incandescent Equivalent:
40W
Installation Notes:
2-pin LED lamps work in both 2-pin (magnetic) and 4-pin (electronic) sockets.
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type B
Lamp Filament:
LED
Lens:
Yes
Lens Finish:
Frost
Location Rating:
Damp
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
0.99
Quantity In Pack:
1
R9 Value:
5
RoHS Compliant:
Yes
SDS class:
LED_Lamp
Short Description:
9WPLH/LED/840/BP/2P
Style:
Transitional
Technology:
LED
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Wattage Selectable:
No
Watts:
9W
Manufactured By:
Satco Products Inc.
