Part Number: S29860
/
Vendor ID Number: 27
/
Custom:

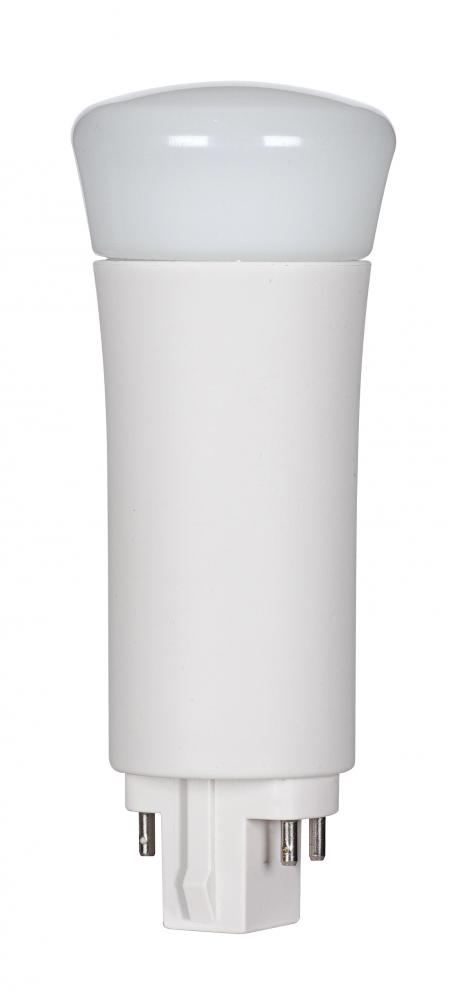

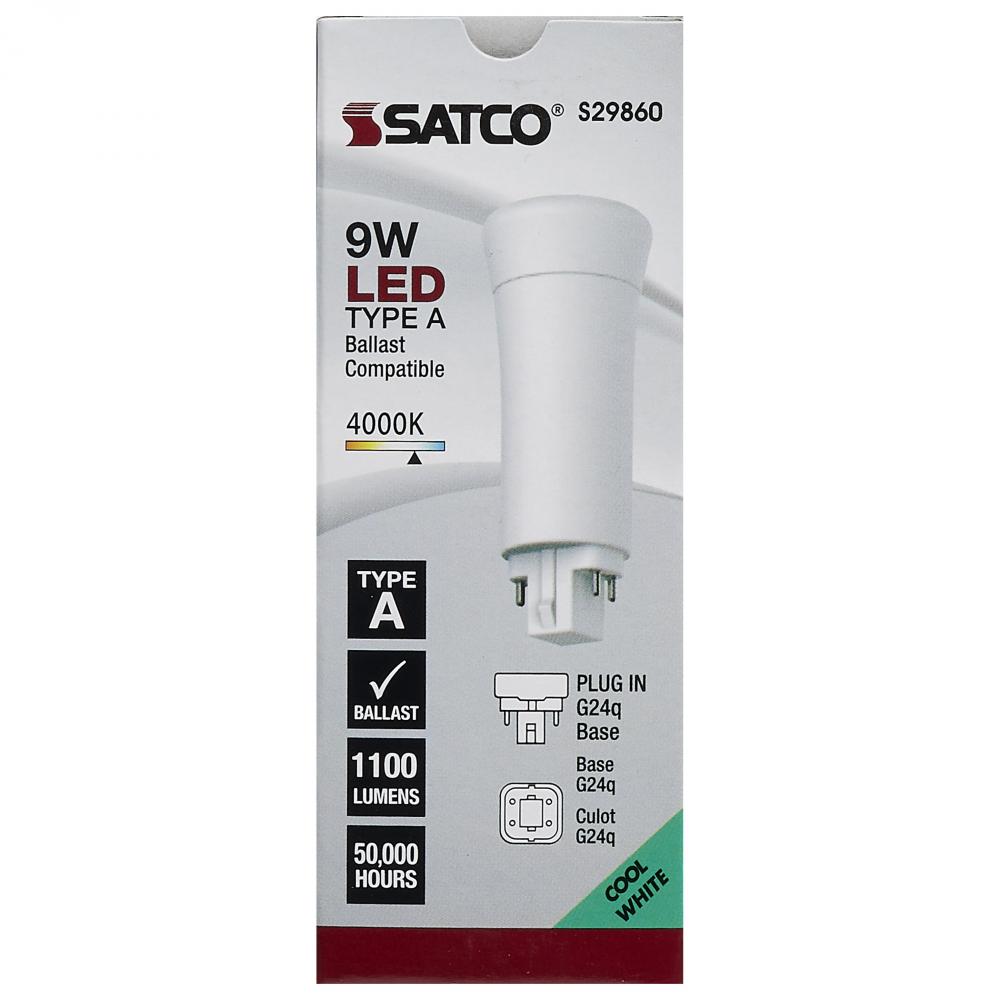

9 Watt LED PL 4-Pin; 4000K; 1100 Lumens; G24q base; 50000 Average rated hours; 120 Deg. Beam Angle;
by Satco Products Inc.
25
44
Pack Of: 1
1625 In Stock
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Width: 1.91"
Product Overview
9 Watt LED PL 4-Pin; 4000K; 1100 Lumens; G24q base; 50000 Average rated hours; 120 Deg. Beam Angle; Type A; Ballast dependent
Product Availability
-
Item appears to be in stock and ready to ship
Technical Details
Details
Category:
Light Bulbs
Subcategory:
LED Bulbs
Finish:
White /vendors/vendorImages white.jpg
Style:
Traditional
Finish Family:
White /vendors/vendorImages white.jpg
Category:
LED
Sub-Category:
LED CFL Replacements Pin Based
Volts:
Ballast Dependent
Bulb Dimmable:
Yes-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
4000K
Bulb Shape:
PL
Diameter:
1.91
EA Length:
2
Harmonized Codes:
8539.52.0091
Length:
4.69
Lumens:
1100L
Shap Carton Width:
2
Ship Carton Height:
4.8
Ship Weight:
0.29
Warranty:
5 Year Limited - 10 hr per day
Weight:
0.23
AC/DC:
Ballast dependent
BAA Compliant:
No
Ballast Bypass Direct:
Direct
Ballasting Requirements:
Ballast required
Beam Spread:
120
Bulb ANSI Base:
G24q
Bulb Base:
G24q (4-Pin)
Bulb Finish:
Frost
Burning Position:
Base Up or Down
Carton Cubic Feet:
0.0111
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Cool White
Country Of Origin:
China
CRI:
80+
Dimmable Function:
Only Dimmable with Compatible Dimming Ballasts
DLC Approved:
Yes
DLC Classification:
Standard
DLC ID:
PLZ5IXXDQS03
DLC Primary Use:
Replacement Lamps (Plug and Play) (UL Type A)
Efficacy:
122.22 LPW
Enclosed Fixture Use:
Yes
Enclosure Rating:
Enclosed Rated Lamp
FCC Compliant:
Yes
Flourescent Equivalent:
18W/26W/32W/42W
Housing Color:
White
Incandescent Equivalent:
40W
Lamp Ballast Type A/B/C:
Type A
Lamp Filament:
LED
Lens:
Yes
Lens Finish:
Frost
Location Rating:
Damp
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
0.9
Quantity In Pack:
1
R9 Value:
13
RoHS Compliant:
Yes
SDS class:
LED_Lamp
Short Description:
9WPLV/LED/840/DR/4P
Style:
Transitional
Technology:
LED
Title 20 Compliant:
Exempt
Total Harmonic Distortion:
20%
Wattage Selectable:
No
Watts:
9W
Manufactured By:
Satco Products Inc.
